Product Description

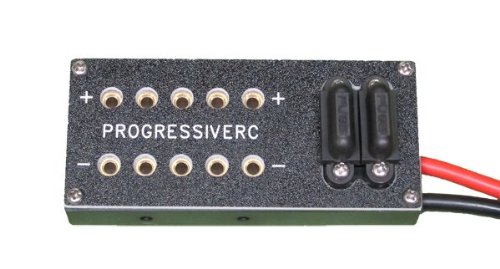

Sometimes you’ve just got more power than you wish to have. But sharing that power out, whether it’s plugging in your buddies’ chargers at the field, or running more than one devices on your bench at home, could be a messy and confusing array of wiring and connections that’s more trouble than its worth. That’s where the PRC PowerBlock comes in. The design couldn’t be simpler – just plug the block into your power supply and you straight away have 5 connections in a position and waiting to be used. No moving parts, no switches, just power.
Our Heavy Duty PowerBlock is designed to accommodate the largest charging setups. With connections bored out of two solid copper rails, you’re getting the most productive connection with the least conceivable amount of resistance. The block itself is machined out of a single piece of thermoplastic whose insulating properties – both heat and electric – are perfect for the task at hand. Two 25 amp fuses in parallel complete the package, giving you peace of mind that your gear is secure from any overload or reversed connections.

Specifications

• Power Input Connectors: 4mm Male Banana Plugs
• Power Output Connectors: 5 connections which accept 4mm Male Banana Plugs
• Maximum Input Voltage: 30V
• Maximum Current: 40A continuous
• Wire Type: 10 AWG Silicone
• Wire Length: 7″
• Weight: 226g
• Dimensions: 110x50x17mm
